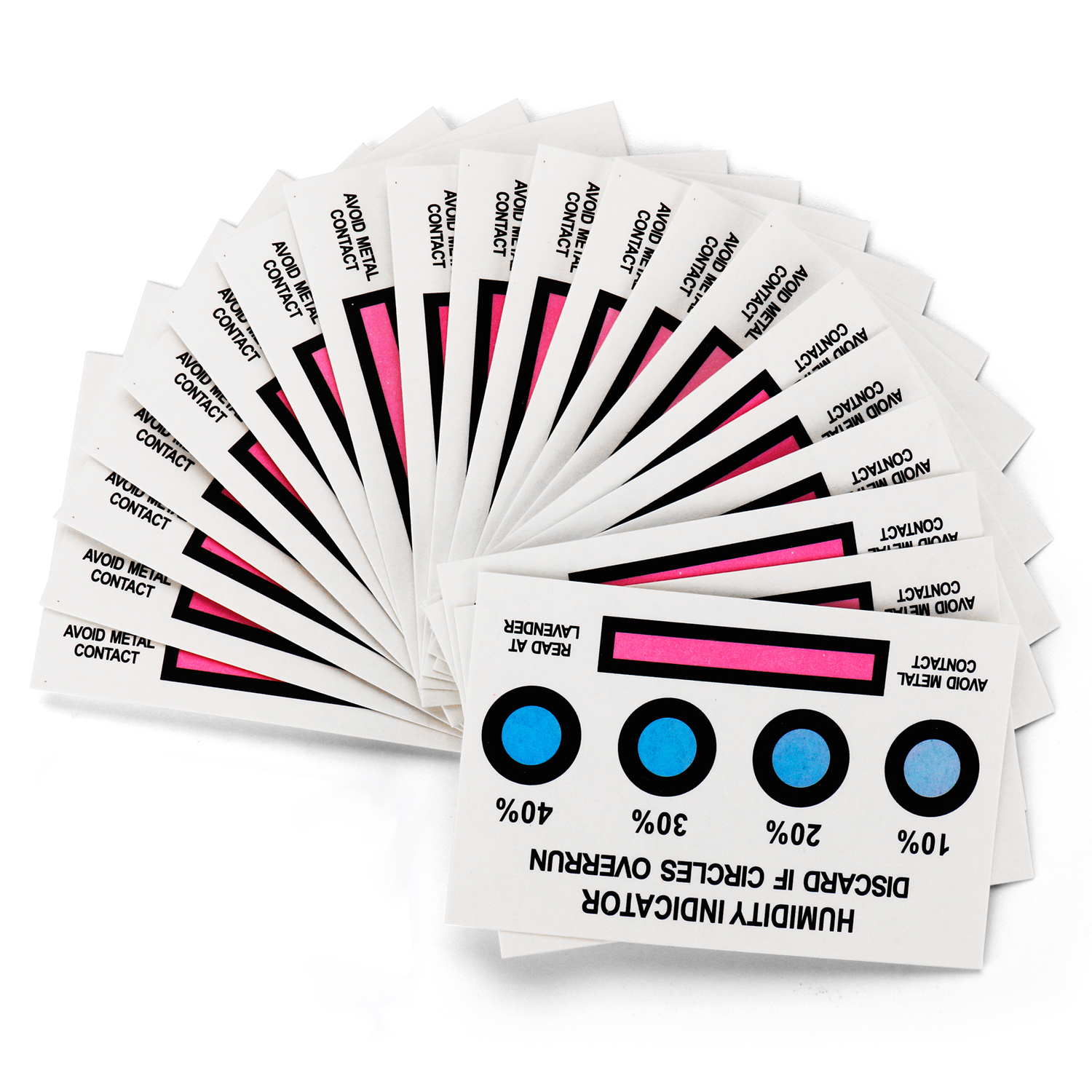

Humidity Indicating Cards are the most accurate cards available in the market today. They are often used in conjunction with a desiccant and a moisture barrier bag when shipping electronic components.It meets military specifications (Mil-I-8835 and Mil-Std-2073- 1D Method 50) and JEDEC standards (J-STD-033C ). One-spot, three-spot, four-spot and six-spot cards are currently available, in a range of customizable humidity levels.

Purpose

To provide a simple, reliable, visual indication of the relative humidity within a sealed package or any given environment.

Specifications

Description	Characteristics
Indicates	10%, 20%, 30%, 40%, 50%, 60% relative humidity
Material	White Blotting Paper 300 g/m2
Dimensions	105mm x 37mm
Printing	Heavy Black on White
Packaging	260 pcs per tin can,packed by seal bag and tin can

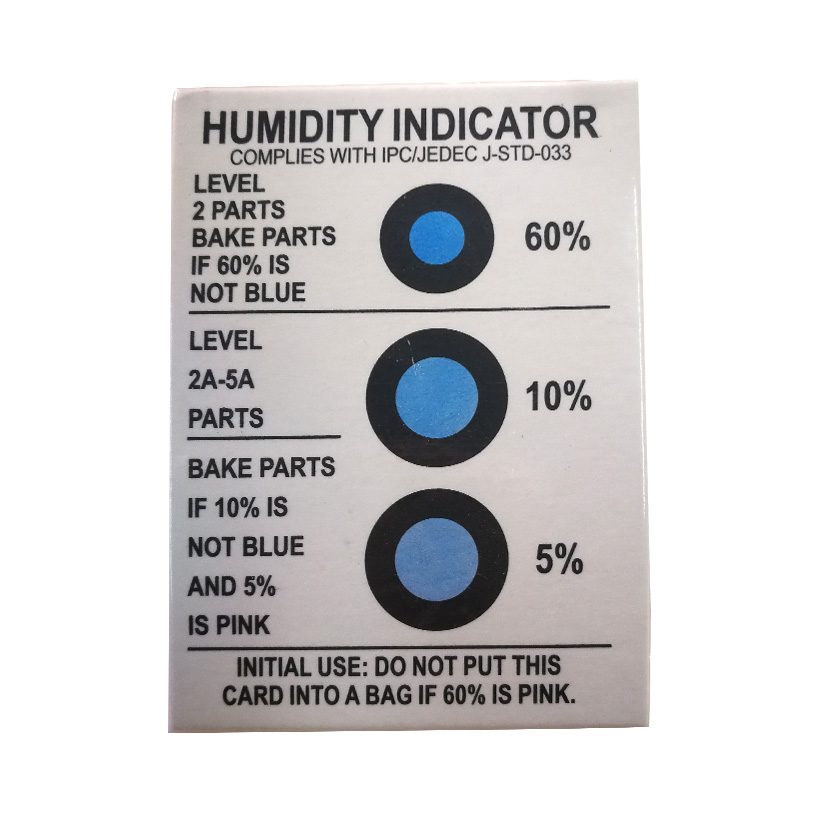

Standards	JEDEC J-STD-033
Shelf Life	2 years from date of manufacture provided container is not opened or damaged
Storage Condition	Keep in dry area away from sunlight under normal temperature condition (10 °C ~ 40°C)

Typical applications
Industries: Semiconductors, Electronics, Military, Industrial
Semiconductors
Electronics
Military components
Optical instruments
Preservation packaging
Bulk Packaging
Metals/Automotive parts
Produce
Museums and artifacts
Diagnostics
Humidity Indicator Card Type

Dot Type	Card Size (L*Hmm)	Packing (PCS/Bag/Can/Ctn)	Carton Size (L*H*Wmm)
1 dot	45X55	4000/200/20/1	550X230X230
3 dots	50X75	4000/200/20/1	550X550X12O
4 dots	50X75	5000/250/25/1	550X550X12O
5 dots	55X90	5000/250/25/1	550X335X280

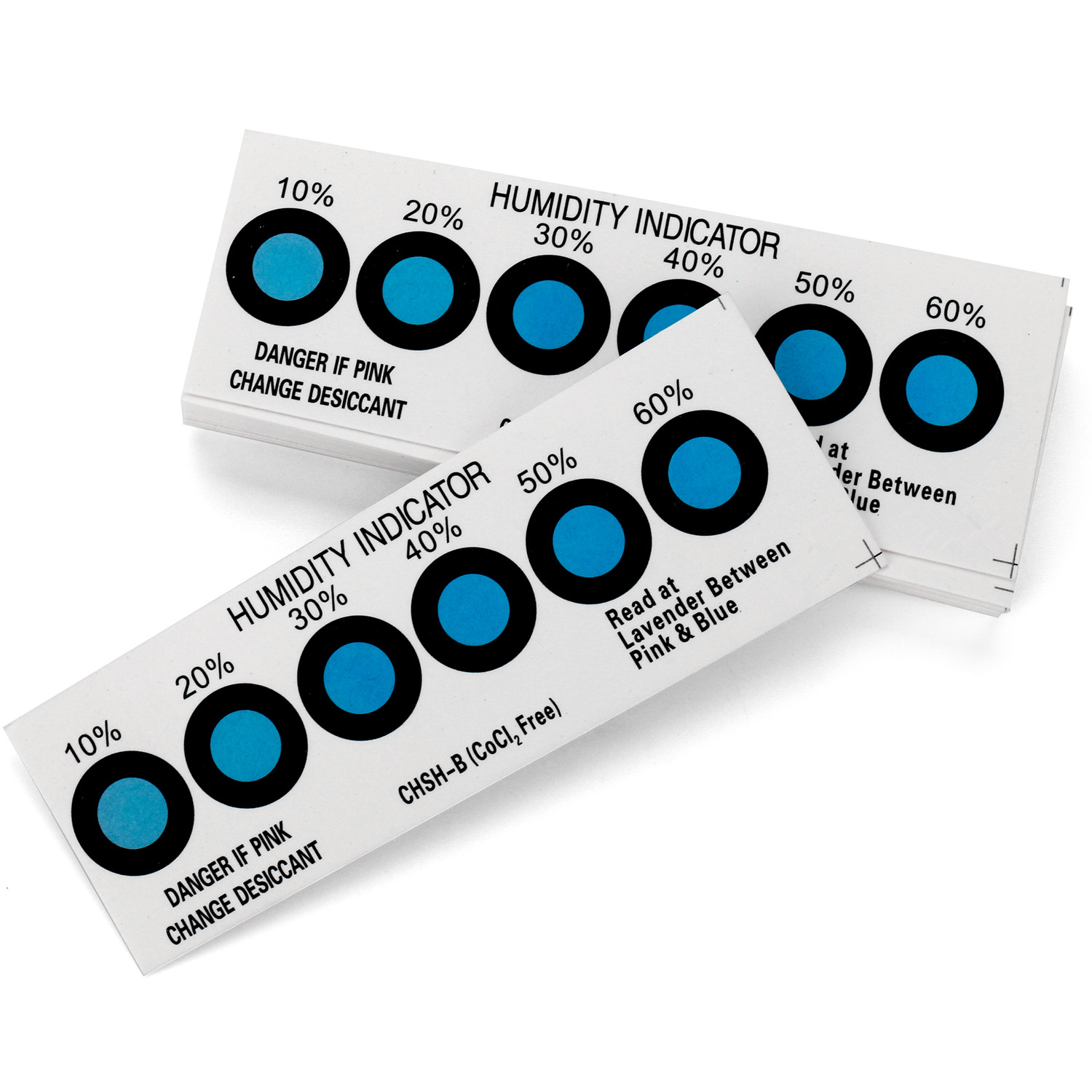

6 dots	105X37	5200/260/20/1	550X230X270

REVERSIBLE CARDS
1.Usage Requirements

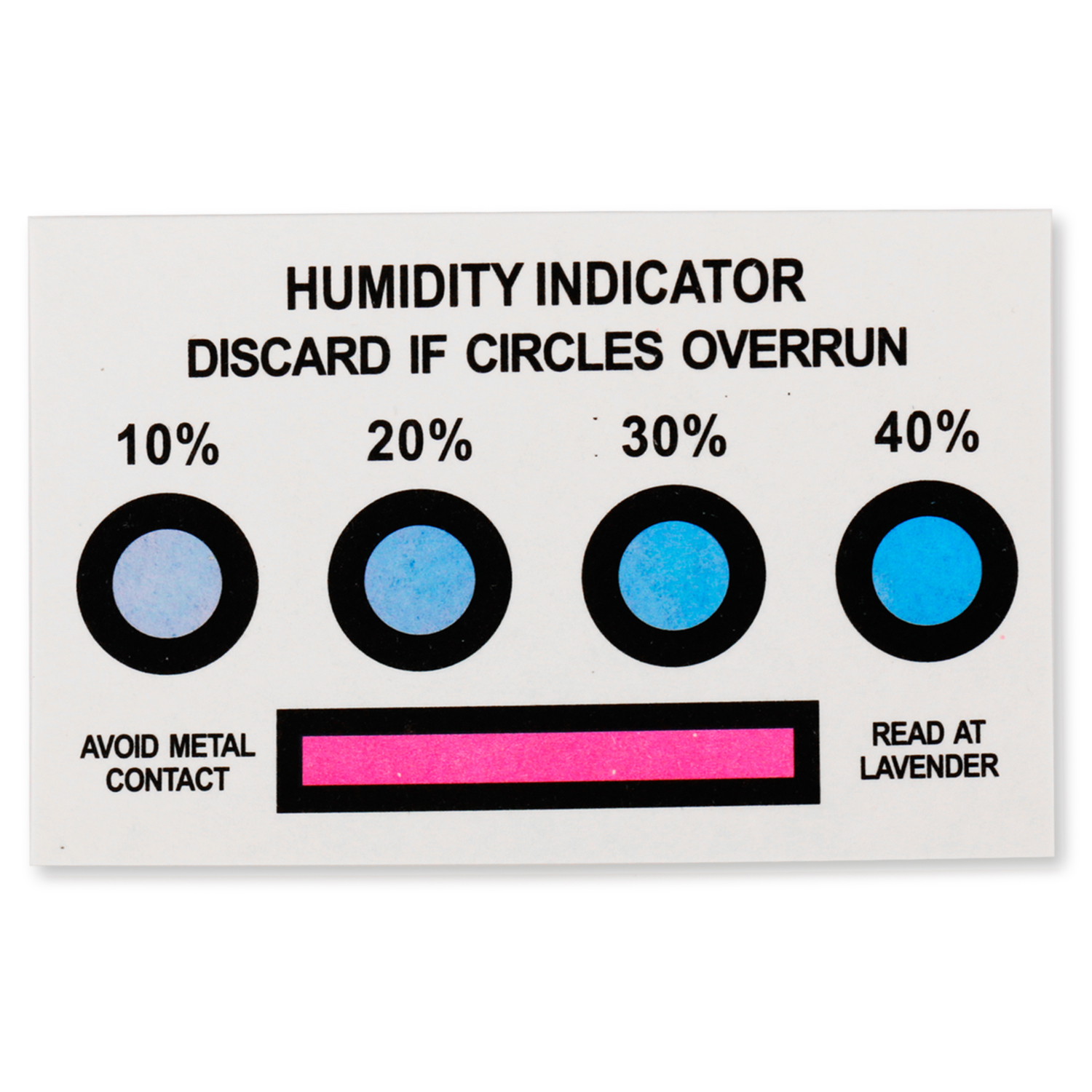

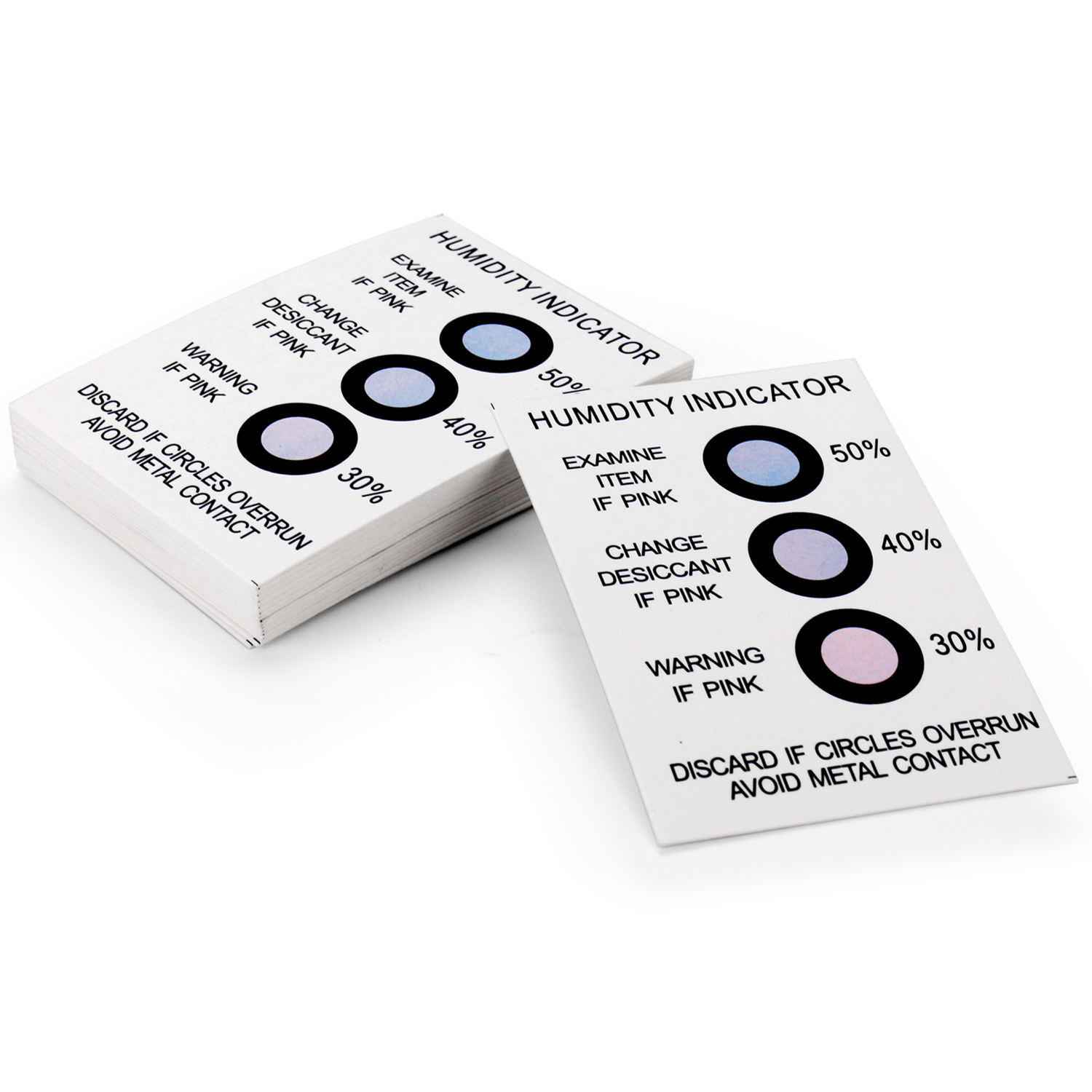

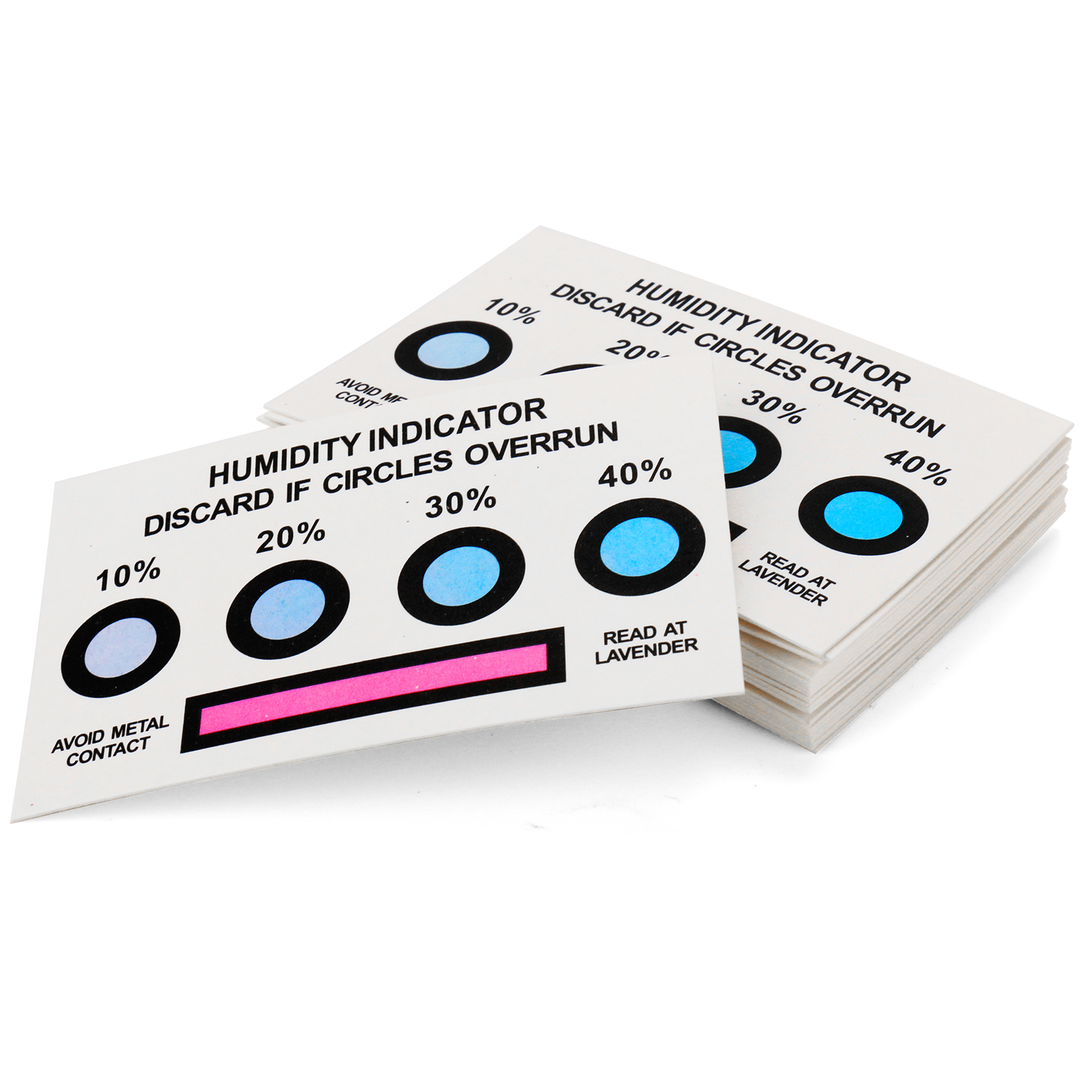

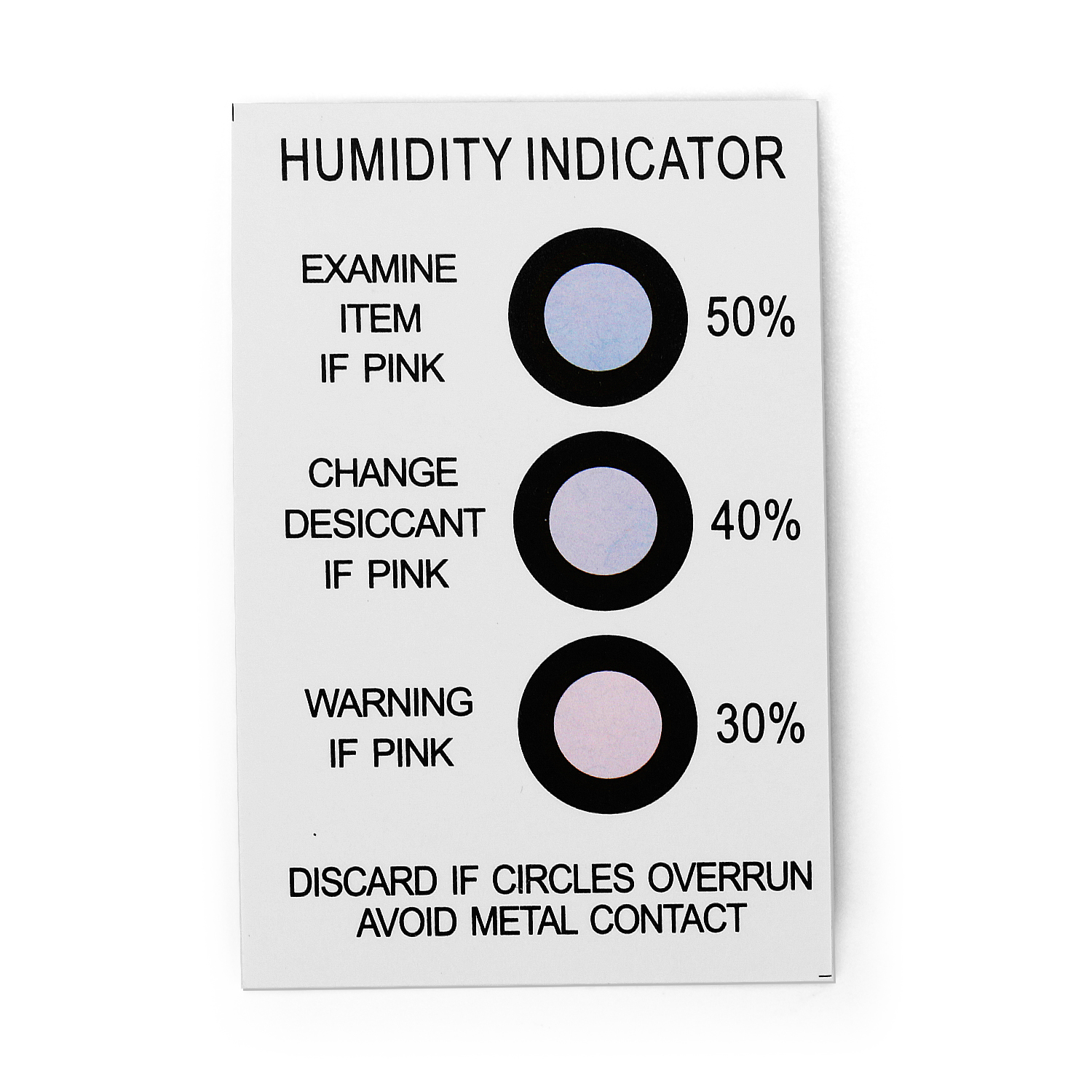

Humidity indicator spots change from blue (dry) to pink (humid) as relative humidity changes.
Current relative humidity is indicated by a lavender color.
Indicator spots will change within the HIC exposed to a change in relative humidity.
Humidity indicator spots are reversible. Pink spots will change back to blue when the volume of air is dried. Pink or lavender spots can be returned to blue by placing them in a sealed container with one unit (33 grams) of desiccant for 48 hours.
The highest humidity indicator spot should be blue before the card is put to use.
The humidity indicator card will be at its most accurate when used at a temperature of 73°F (23°C).
Avoid contact with indicator spots. Wash any irritated areas with clean water.

2.Storage and Handling
When storing, keep indicators in their original container, sealed with a desiccant if possible.
Replace desiccant after container is opened three times.
Store in a cool, dry area.
Keep indicators away from water or steam.
Keep away from ammonia gases, which will render the indicators useless.
